COPPER VIA FILL PCBS

Engineering-led copper via fill manufacturing from our UK facility, supporting HDI constructions, via-in-pad designs, and thermally demanding multilayer PCBs.

COPPER-FILLED VIA STRUCTURES FOR HDI AND MULTILAYER PCBS

Copper via fill uses controlled electrolytic plating to deposit copper uniformly within blind, buried, and through-hole via structures, supporting HDI constructions, via-in-pad configurations, and thermally demanding multilayer designs. Exception PCB manufactures copper-filled via structures using tightly controlled plating chemistry, current distribution, and process monitoring to ensure complete fill, consistent conductivity, and structural integrity.

Our engineers review via geometry, stack-up structure, and plating parameters before production begins, ensuring each specification is achievable within stable manufacturing limits. For designs incorporating stacked microvias, high-power components, or fine-pitch assembly requirements, early engineering engagement helps align the via strategy with both design intent and long-term reliability.

OUR COPPER VIA FILL CAPABILITY

Find answers on via types supported, plating tolerances, fill consistency, and compatibility with your stack-up design.

COPPER VIA FILLING CAPABILITY SNAPSHOT

The following capability ranges summarise the copper via filling technology available within Exception PCB’s manufacturing environment.

CAPABILITY
Via structures supported
Blind, buried and through-hole vias
Minimum laser microvia diameter
75 µm
Minimum mechanical drill diameter
0.10 mm
Maximum via aspect ratio
Up to 10:1
Microvia aspect ratio
Up to 1:1
Via-in-pad support
Supported for HDI, fine-pitch assembly and thermal management
Inspection and validation
Microsection analysis and verification
Reliability validation
Interconnect Stress Testing (IST) available
Electrical testing
100% electrical test
Board Thickness
0.5mm - 3.2mm

These capabilities allow Exception PCB to manufacture copper-filled via structures that are critical for stacked laser vias, high-density routing, and thermally demanding multilayer PCB designs while maintaining strong electrical and mechanical integrity.

Engineering review is used to confirm that via geometry, stack-up, and plating parameters remain within stable manufacturing limits for the intended application.

READY TO DISCUSS YOUR VIA FILL REQUIREMENTS?

Our engineers can review your via geometry, stack-up structure, and copper fill specification to confirm manufacturability and support your design into production.

VIA STRUCTURES FOR COPPER FILL

Copper via filling supports a range of via structures used in advanced PCB constructions.

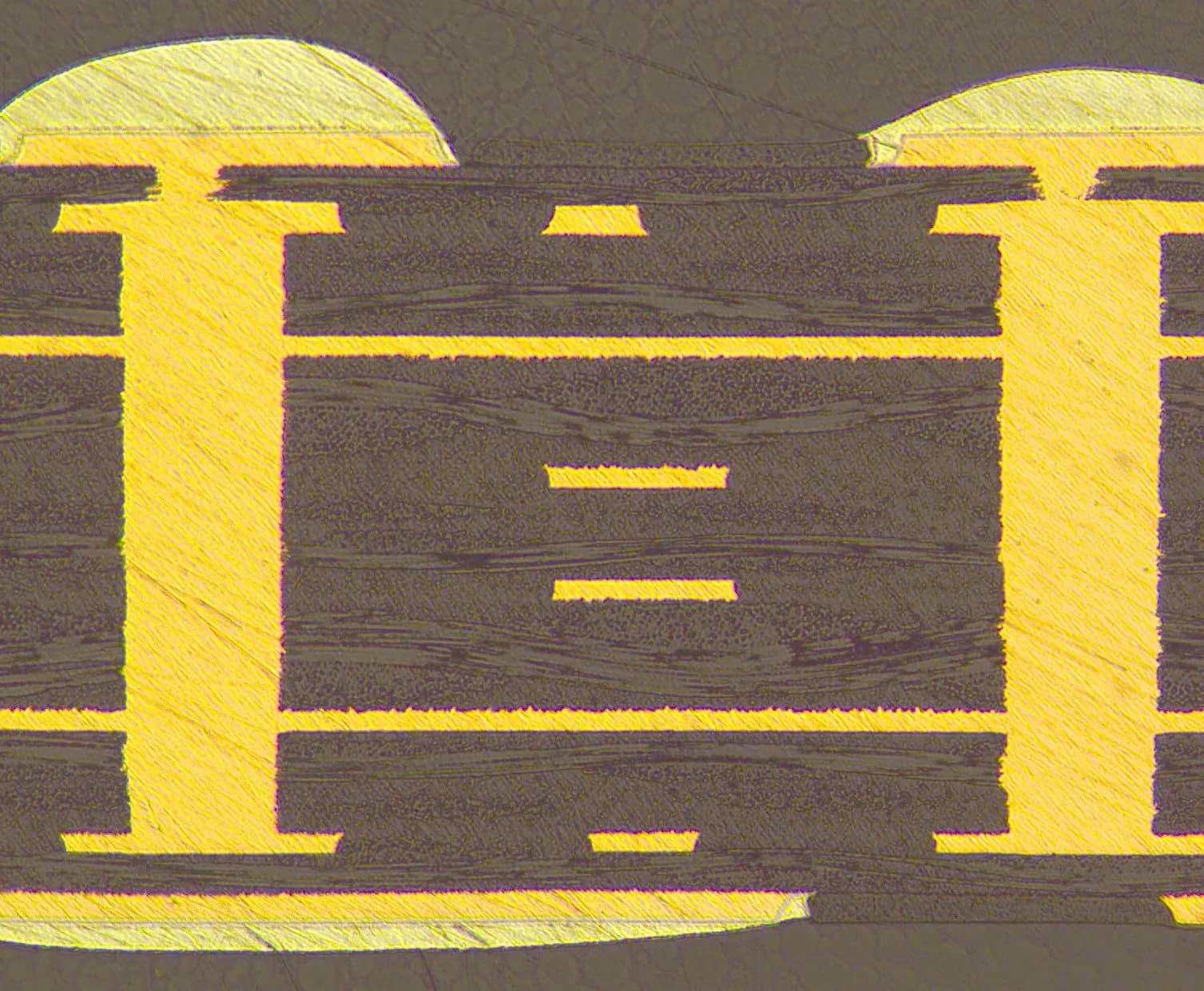

Microscopy cross-section of copper-filled blind vias in a high-density PCB, demonstrating precise laser drilling and uniform copper deposition from surface pad into internal layers.

BLIND VIAS

Blind vias connect outer layers to internal layers and are commonly used in HDI structures. Copper filling creates a planar surface that supports via-in-pad assembly and sequential lamination structures.

Precise plating control ensures the via fills completely while maintaining surface flatness required for fine-pitch component assembly.

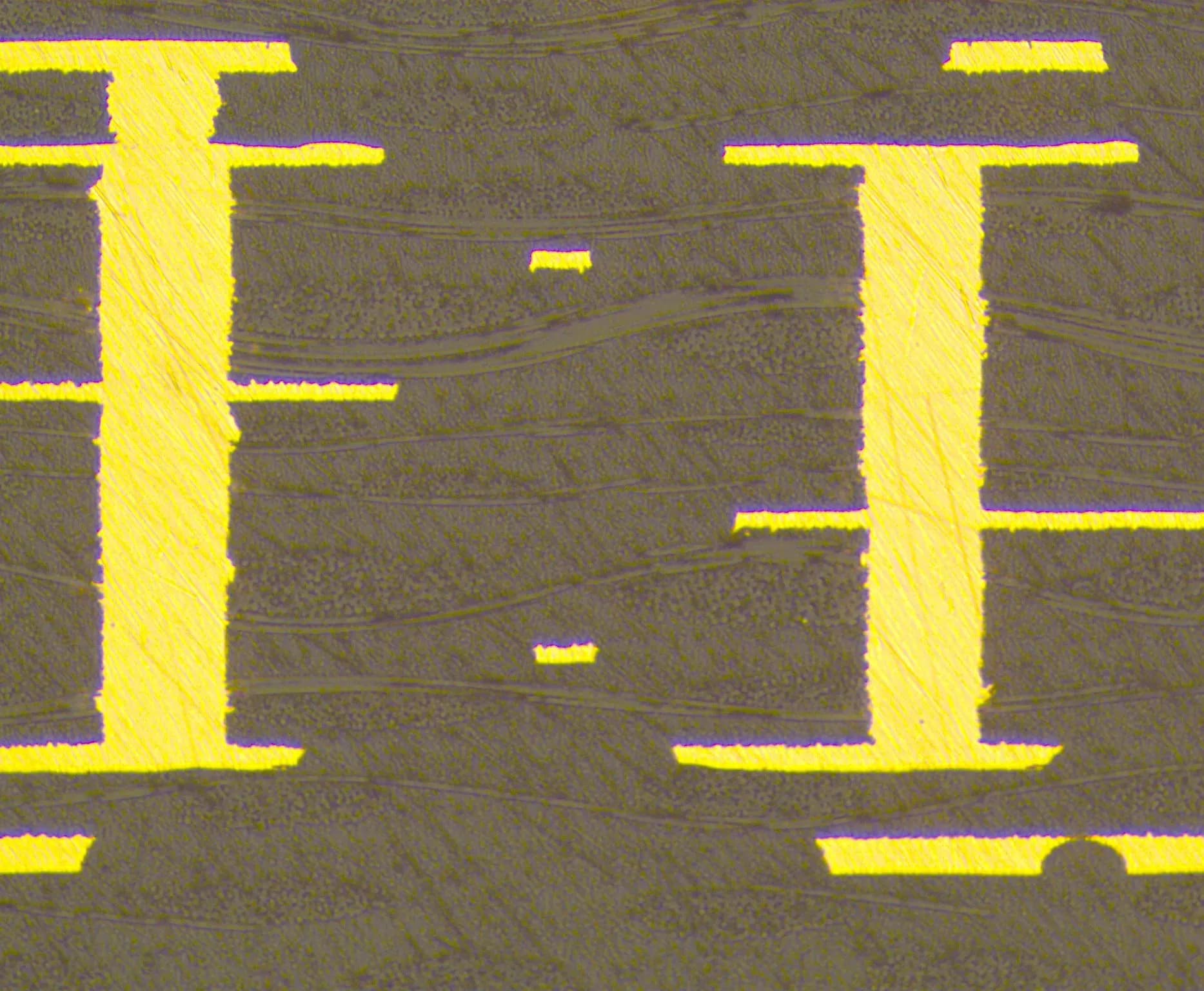

Microscopy cross-section of copper-filled buried vias interconnecting internal PCB trace layers, demonstrating reliable copper deposition with no surface connection at either end.

BURIED VIAS

Buried vias are located between internal layers and are filled prior to the final lamination stages. Filling buried vias supports higher routing density by freeing outer layer space while maintaining reliable electrical connectivity within the stack.

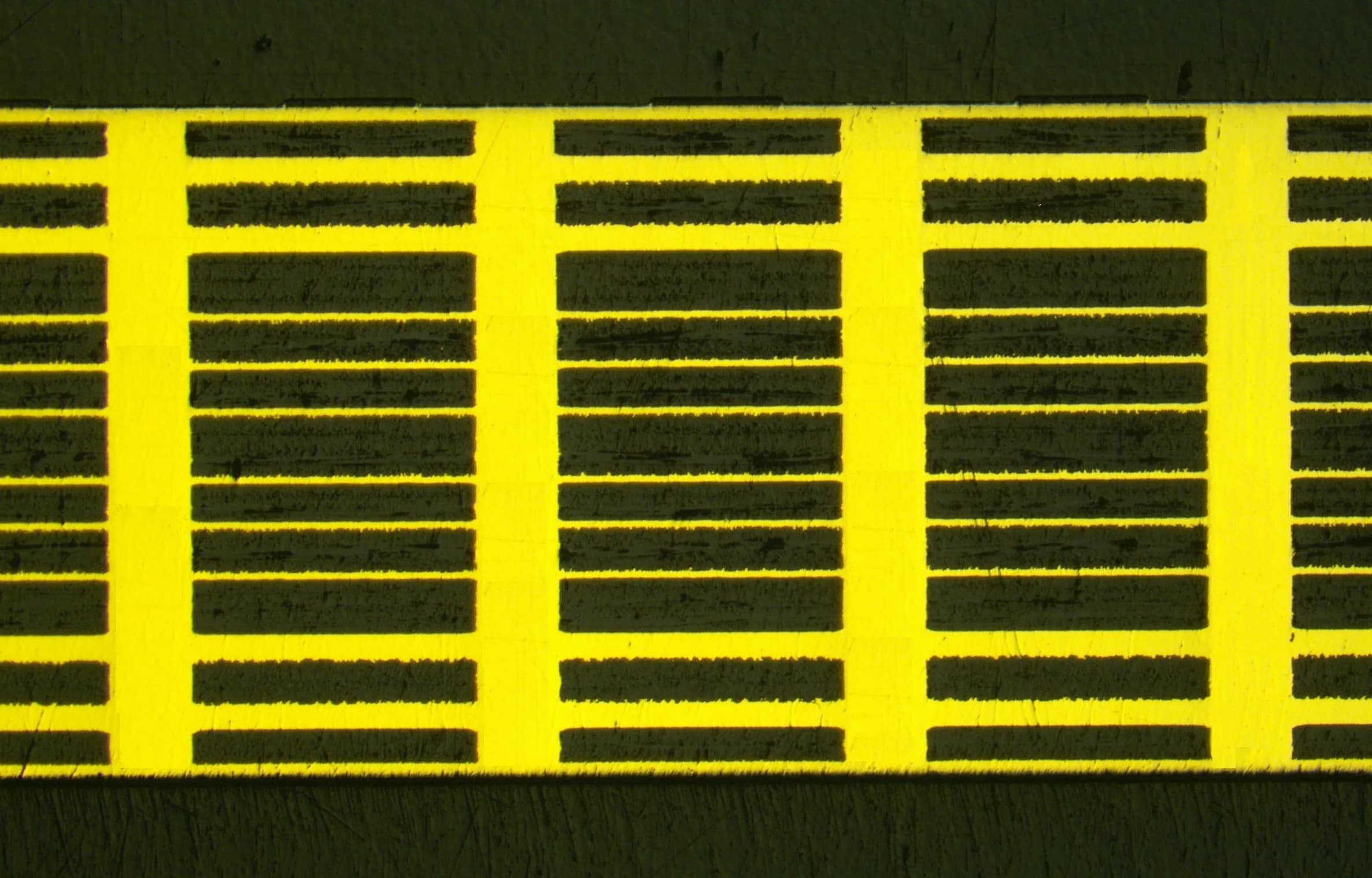

Macro cross-section view of precision copper-filled PCB vias showing consistent fill uniformity and via geometry across multiple columns, supporting IPC Class 3 reliability requirements.

THROUGH-HOLE VIAS

Through-hole vias can also be filled with copper to support several design objectives including:

  • Thermal management
  • Structural reinforcement
  • Via-in-pad structures
  • Stacked via constructions

Copper filling strengthens the via structure and improves electrical and thermal conductivity through the PCB.

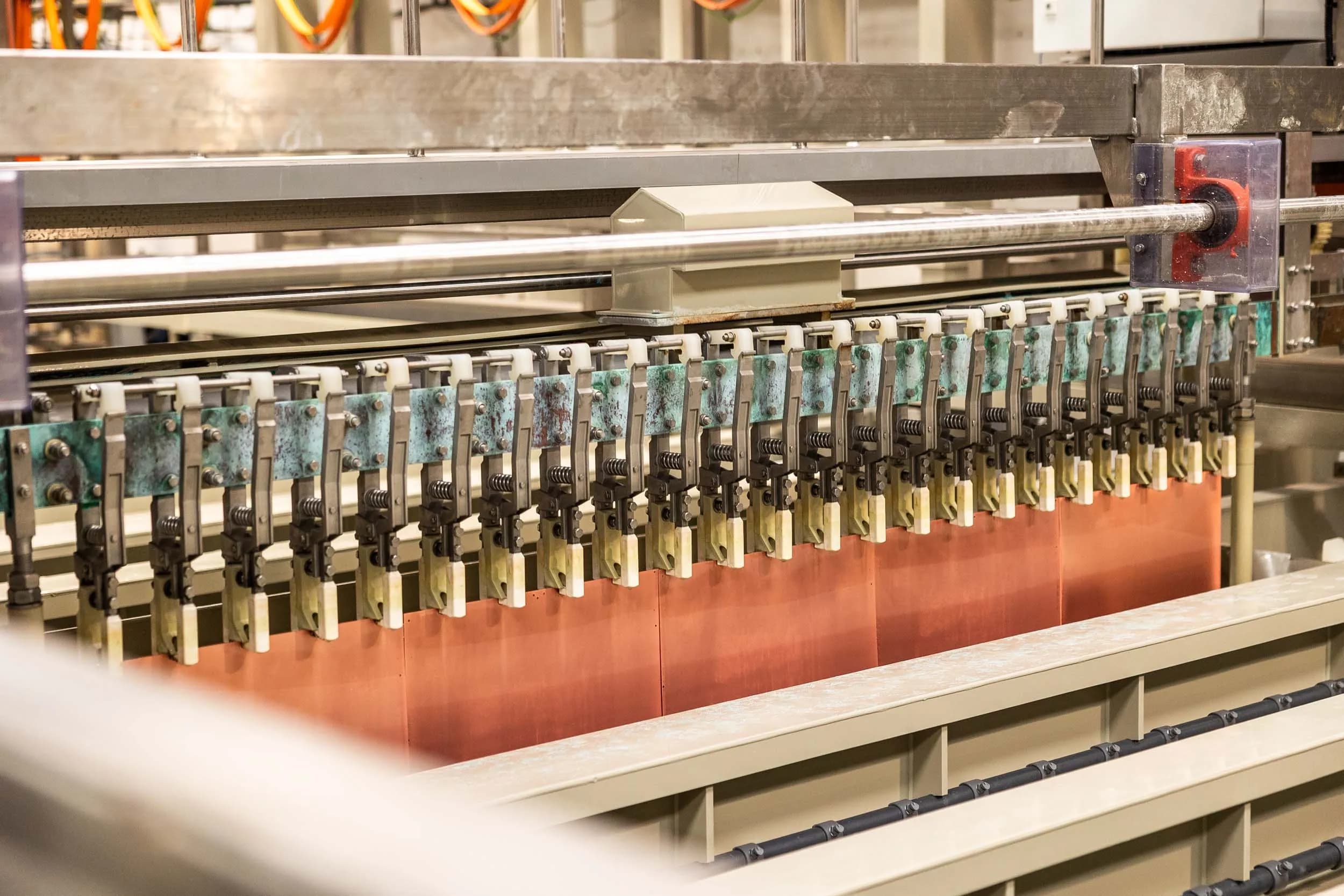

Technical close-up view of heavy-duty electroplating contact clamps and conductive busbars along a processing track.

COPPER VIA FILL PROCESS CONTROL AND PLATING

Achieving reliable copper via fill requires precise control of plating chemistry and electrical parameters.

Exception PCB uses electrolytic copper plating systems designed to promote controlled deposition within the via barrel while limiting excess copper growth on the surface.

Modern plating chemistries include tailored additive systems that control copper growth behaviour within the via structure. These additives regulate deposition rates, helping ensure uniform fill and minimising void formation.

Exception PCB technician inspecting a printed circuit board using magnified screen inspection equipment.

VIA-IN-PAD DESIGN AND SURFACE PLANARITY

Copper via filling enables planar surfaces required for via-in-pad PCB designs. These structures are commonly used beneath fine-pitch BGAs and high-density component footprints.

By fully filling the via and controlling copper growth, Exception PCB ensures that the finished surface remains flat and suitable for reliable solder joint formation.

Planar via structures also support sequential lamination processes used in advanced HDI designs.

An Exception PCB technician in protective gear moving a vertical storage rack of production panels into an AnPT thermal curing oven.

THERMAL PERFORMANCE OF COPPER-FILLED VIAS

Copper-filled vias significantly improve heat dissipation within multilayer PCB designs. Filled vias act as thermal conduits, allowing heat generated by power devices to spread into copper planes and adjacent layers.

Dense arrays of filled vias are commonly used beneath high-power components to reduce thermal resistance and improve system reliability.

Compared with resin-filled structures, copper-filled vias provide superior thermal conductivity and improved mechanical stability during thermal cycling.

From an electrical perspective, copper-filled vias provide low-resistance interconnections that support high-speed and RF signal performance.

VIA SHIELDING AND RF SIGNAL INTEGRITY

Copper vias can also be used strategically to control electromagnetic behaviour in high-frequency circuit designs.

Via shielding techniques, often referred to as via fencing or via stitching, use rows of grounded vias placed adjacent to sensitive signal traces or RF transmission structures.

RF PCB Capability

THESE GROUNDED VIA STRUCTURES:

  • Constrain electromagnetic fields
  • Reduce crosstalk between adjacent signal lines
  • Provide low-inductance return paths
  • Improve impedance stability in RF structures

Via shielding is widely used in RF and high-speed designs where signal integrity and electromagnetic compatibility are critical.

PROCESS VERIFICATION AND RELIABILITY TESTING

Copper via filling processes at Exception PCB are validated through routine inspection and reliability testing.

VERIFICATION METHODS INCLUDE:

  • Microsection analysis of plated vias
  • Cross-section inspection to confirm complete copper fill
  • Evaluation of plating uniformity and microstructure
  • Verification of absence of voids within the via barrel

Copper-filled via structures produced at Exception PCB have also been evaluated using Interconnect Stress Testing (IST) to confirm reliability under repeated thermal cycling conditions.

These tests verify that the copper interconnect maintains electrical continuity and structural stability during thermal stress.

Exception PCB can support IST testing to aid customer qualification and reliability verification where required.

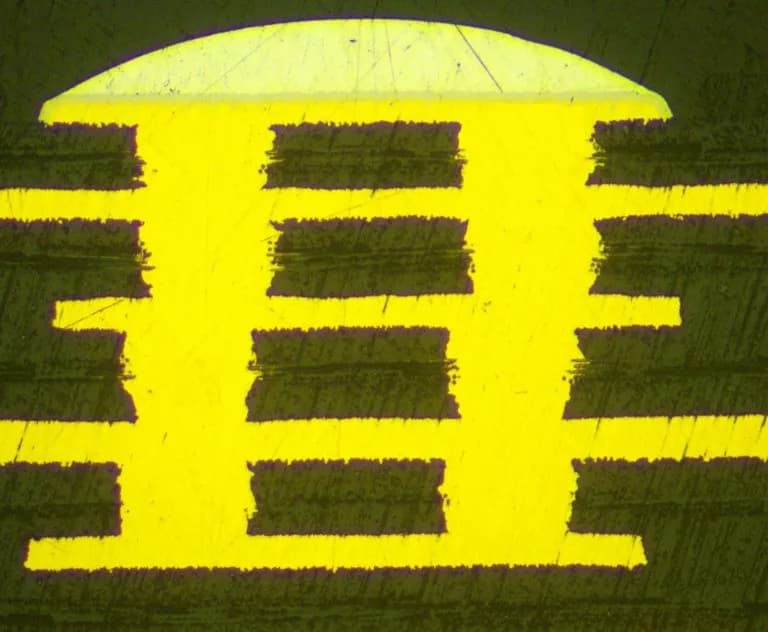

Macro cross-section view of precision copper-filled PCB vias showing consistent fill uniformity and via geometry across multiple columns, supporting IPC Class 3 reliability requirements.

Microsection cross-section of copper-filled through-hole vias. Consistent fill uniformity across the array confirms plating integrity and process control.

COPPER VIA FILL PCB APPLICATIONS

Copper via filling is specified where via structures need to contribute to electrical performance, thermal management, or structural integrity, rather than simply providing layer-to-layer connection.

5G INFRASTRUCTURE

High-density line cards and RF front-end modules use copper-filled vias to support via-in-pad designs under fine-pitch components, eliminating solder wicking and improving assembly yields. Thermal management through the via stack is also critical in boards carrying significant power dissipation.

AEROSPACE & SPACE ELECTRONICS

Avionics and space hardware requires via structures that remain mechanically and electrically stable across wide thermal cycling ranges. Copper fill eliminates the void that an unfilled via leaves, reducing the risk of barrel cracking and maintaining interconnection integrity over long service lives.

AUTOMOTIVE & POWER ELECTRONICS

Power modules and motor drive electronics generate significant heat that must be conducted through the PCB. Copper-filled vias provide a thermal path from component pads to internal copper planes, supporting junction temperature management in high-current designs.

HIGH-SPEED COMPUTING

Processors, FPGAs, and memory interfaces operating at multi-gigabit speeds place high demands on signal integrity. HDI construction reduces stub lengths, supports back-drilling where required, and allows differential pairs to be routed with the consistency these data rates demand.

COPPER VIA FILL ENGINEERING SUPPORT

Copper via filling is often integrated within complex multilayer and HDI PCB designs. Early engagement with the manufacturing team helps ensure via structures are compatible with the overall stack-up design.

This collaboration helps ensure copper via filling supports both electrical performance and long-term reliability.

Learn About Design For Manufacture

EXCEPTION PCB ENGINEERS REGULARLY SUPPORT DESIGN TEAMS BY REVIEWING:

  • Via structures and aspect ratios
  • HDI constructions
  • Thermal management strategies
  • Sequential lamination requirements
  • Via-in-pad implementation

TALK TO OUR ENGINEERS

If your design uses HDI, stacked microvias, or high-power components, our engineers can review the via structure and manufacturing approach.

COPPER VIA FILL FAQS

Below we have answered the questions our engineers are asked most often. If yours isn't covered, get in touch with the team directly.

Copper-filled vias and resin-filled vias serve different purposes in PCB design.

Copper-filled vias are electroplated until the via barrel is completely filled with copper. This creates a highly conductive interconnection that also acts as an effective thermal pathway through the PCB structure.

Resin-filled vias are typically filled with non-conductive epoxy before being plated over. These structures are often used to support planarity for via-in-pad designs or to prevent solder wicking during assembly.

COPPER-FILLED VIAS GENERALLY PROVIDE:

  • Higher thermal conductivity
  • Lower electrical resistance
  • Greater mechanical strength
  • Improved long-term reliability under thermal cycling

Resin-filled structures are typically used where planarity is required but thermal performance is less critical.

Via-in-pad designs place vias directly within component pads, often beneath BGAs or fine-pitch packages. These vias must be fully filled and planar to ensure reliable solder joint formation during assembly.

COPPER VIA FILLING SUPPORTS VIA-IN-PAD STRUCTURES BECAUSE IT PROVIDES:

  • A flat surface suitable for fine-pitch soldering
  • Strong mechanical support beneath the pad
  • Stable electrical interconnections
  • Improved heat transfer away from the component

Fully copper-filled vias are commonly used in HDI PCB designs where space constraints require efficient vertical interconnections.

Modern copper via filling processes can support high aspect ratio vias when plating chemistry and current distribution are carefully controlled. Exception PCB’s advanced plating techniques are used to improve copper deposition uniformity within deeper vias.

The maximum aspect ratio we can achieve for mechanical vias is 10:1. For laser vias it’s 1:1. Our process engineering team are constantly working to further improve these capabilities.

At Exception PCB, via filling capability supports both microvias used in HDI constructions and larger through-hole vias used for thermal and structural reinforcement.

Engineering review is typically performed to confirm that via geometry remains within a stable manufacturing process window.

Copper-filled vias are highly reliable when manufactured using controlled plating processes and appropriate stack-up design.

Because the via structure is filled with copper rather than epoxy, the filled structure provides:

  • Strong mechanical integrity
  • Reduced risk of delamination
  • Lower Z-axis coefficient of thermal expansion (CTE) effects
  • Improved electrical continuity during temperature cycling

Copper-filled via structures produced at Exception PCB have been evaluated through interconnect stress testing (IST) to verify reliability under thermal stress conditions.

Copper-filled vias are typically used when the PCB design requires:

  • Via-in-pad assembly for fine-pitch components
  • Stacked microvia structures in HDI designs
  • Improved heat dissipation from high-power components
  • Enhanced mechanical stability within the PCB structure

They are particularly common in designs used for telecommunications infrastructure, aerospace electronics, automotive power systems, and other high-performance electronic applications.
